Best Deals on Raised Face JIS B2220 5K & 10K Flanges, Nickel Alloy JIS B2220 Flanges, Carbon Steel JIS B2220 Flange, JIS B2220 Blind Flanges, JIS B2220 20K Slip on Flanges, JIS B2220 Class 300 Flanges, JIS B2220 Raised Face Flange, Stainless Steel JIS B2220 Flange Supplier in India.

Kalpataru Piping Solutions is one of the finest distributor of JIS B 2220 Flanges, which are widely used in different industrial applications where high temperature and pressure is encountered. Developed by means of affluent industrial stand, we are involved in offering these Stainless Steel JIS B 2220 Flanges, which is available at affordable rates from us. Corresponding to the demands of clients, we are engaged in providing finest quality of Carbon Steel JIS B 2220 Flanges, which is often used in Steam, Oil & Gas Transmission. Alloy Steel JIS B 2220 Flanges offers an excellent outer diameters and finishes, so as to smoothly match up in the company of the detailed requirements of the customers. Super Duplex Steel JIS B 2220 are factory-made in all the customary dimensions, and are also offered by means of a standard weld bevel that are available in flanged, Victaulic, squared ends and threaded. These Inconel JIS B 2220 Flanges are also used in Instruments / instrumentation; Caustic environments; Corrosive environments; Pins; Pulleys; Bearings, Shafts, Sleeves; Architectural; and more. Other applications for Monel JIS B 2220 Flanges include half sleeves and half bushings in screw conveyors, tile making machines, rock crushing rollers and cement and steel mill equipment. These Hastelloy JIS B 2220 Flanges are as well used in Valve stems, Food processing equipment, Needle valves, Centrifuge liners, Hot extrusion dies, Forming dies, Nozzles, Extruder screws, and many other misc.

High Quality Duplex Steel JIS B2220 5K Flanges, Monel JIS B2220 Pipe Flanges, JIS B2220 150 LBS Forged Flange, Large Selection of Inconel JIS B2220 10K Flanges, Alloy Steel JIS B2220 Flanges, Hastelloy JIS B2220 20K Flange Dealer, Class 1500 JIS B2220 Flanges, SS JIS B2220 Flanges, Class 600 JIS B2220 Flange Exporter.

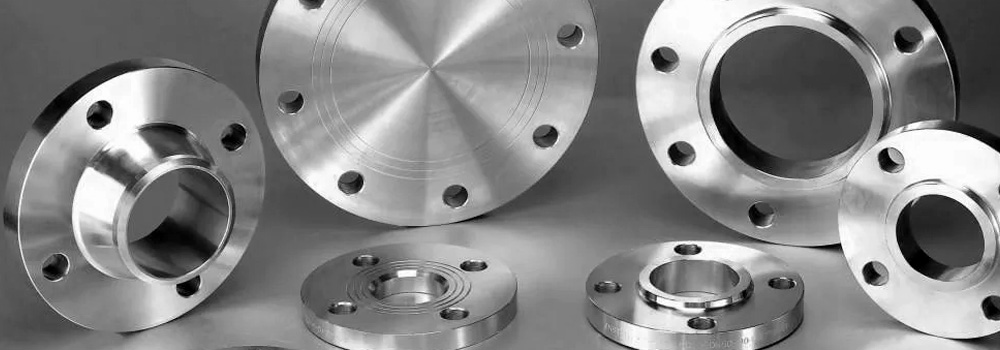

Stainless Steel JIS B2220 Flanges

JIS B2220 Flanges Specification

Size

½" (15 NB) to 48" (1200NB)

Dimension Standard

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS

BS4504 , BS4504, BS1560, BS10

Flange Face Type

Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)

Special design

As per your drawing AS, ANSI, BS, DIN and BS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations BS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange

EN 1092 - 1 Flanges Standard

ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange,
GB Flange, Korean Flange, GOST Flange, PSI Flange
AS 2129: Table D; Table E; Table H
B.S: BS4504 , BS3293, BS1560, BS10
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings
American standard (ANSI)
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
British standard (BS)
German (DIN)
Any other specilised flanges
The other standard:
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

Testing and Documents

Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing

Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

JIS B2220 Flanges Material & Grades

Stainless Steel JIS B2220 Flanges
ASTM A182 F 304, 304L, 304H, 309, 310, 310S, 316, 316L, 317, 317L, 321, 321H, 347, 347H, 446, 904L
Carbon Steel JIS B2220 Flanges
ASTM A105, ASTM A694 Gr. F42, 46, 52, 56, 60, 65, 70
Alloy Steel JIS B2220 Flanges
ASTM A182, F1, F5, F9, F11, F22, F91
Duplex Steel JIS B2220 Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
Super Duplex JIS B2220 Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
High Nickel Alloy JIS B2220 Flanges
ASTM B564, B160, B472, B162, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade 2 & 5), Cupro-Nickel 70/30, Cupro-Nickel 90/10.
Low Temperature Carbon Steel JIS B2220 Flanges
ASTM A350, LF2, LF3

JIS B2220 Flanges Price List

We offer wide range of industrial JIS B2220 Flanges that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Stainless Steel JIS B2220 Flanges Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com

Dimension of JIS B2220 5K Flange

JIS 5K Flange LTB Drilling Data
Normal Pipe Sizes (NPS) O.D. Flanges Flanges Thickness BLRF Thickness Length Of
Bossed
SOH.SW LI
Length Of Weld Neck Daimeter Of
Pitch Circle
Bolt Holes
Number
Daimeter Of
Bolt Holes
Millimeter Inches C T T1 L L1 PCD # H
10 3/8 75 9 9 13 24 55 4 12
15 1/2 80 9 9 13 25 60 4 12
20 3/4 85 10 10 15 28 65 4 12
25 1 95 10 10 17 30 75 4 12
32 1 1/4 115 12 12 19 33 90 4 15
40 2 1/2 120 12 12 20 34 95 4 15
50 2 130 14 14 24 36 105 4 15
65 2 1/2 155 14 14 27 39 130 4 15
80 3 180 14 14 30 41 145 4 19
90 3 1/2 190 14 14 N/A 41 155 4 19
100 4 200 16 16 36 41 165 8 19
125 5 235 16 16 40 43 200 8 19
150 6 265 18 18 40 49 230 8 19
175 7 300 18 18 N/A 49 260 8 23
200 8 320 20 20 N/A 53 280 8 23
225 9 345 20 20 N/A 54 305 12 23
250 10 385 22 22 N/A 61 345 12 23
300 12 430 22 22 N/A 62 390 12 23
350 14 480 24 24 N/A 73 435 12 25
400 16 540 24 24 N/A 76 495 16 25
450 18 605 24 24 40 79 555 16 25
500 20 655 24 24 40 79 605 20 25
550 22 720 26 26 42 81 665 20 27
600 24 770 26 26 44 81 715 20 27
650 26 825 26 28 48 85 770 24 27
700 28 875 26 30 48 94 820 24 27
750 30 945 28 32 52 100 880 24 33
800 32 995 28 34 52 100 930 24 33
850 34 1045 28 36 54 108 980 24 33
900 36 1095 30 36 56 108 1030 24 33
1000 40 1195 32 40 60 116 1130 28 33

Dimensions of JIS B2220 10K Flange

JIS 10K Flange LTB Drilling Data
Normal Pipe Sizes (NPS) O.D. Flanges Flanges Thickness BLRF Thickness Length Of
Bossed
SOH.SW LI
Length Of Weld Neck Daimeter Of
Pitch Circle
Bolt Holes
Number
Daimeter Of
Bolt Holes
Millimeter Inches C T T1 L L1 PCD # H
10 3/8 90 12 12 16 29 65 4 15
15 1/2 95 12 12 16 31 70 4 15
20 3/4 100 14 14 20 32 75 4 15
25 1 125 14 14 20 36 90 4 19
32 1 1/4 135 16 16 22 38 100 4 19
40 2 1/2 140 16 16 24 38 105 4 19
50 2 155 16 16 24 40 120 4 19
65 2 1/2 175 18 18 27 44 140 4 19
80 3 185 18 18 30 45 150 8 19
90 3 1/2 195 18 18 N/A 45 160 8 19
100 4 210 18 18 36 45 175 8 19
125 5 250 20 20 40 47 210 8 23
150 6 280 22 22 40 53 240 8 23
175 7 305 22 22 N/A 55 265 12 23
200 8 330 22 22 N/A 58 290 12 23
225 9 350 22 22 N/A 58 310 12 23
250 10 400 24 24 36 65 355 12 25
300 12 445 24 24 38 68 400 16 25
350 14 490 26 26 42 79 445 16 25
400 16 560 28 28 44 85 510 16 27
450 18 620 30 30 48 90 565 20 27
500 20 675 30 30 48 99 620 20 27
550 22 745 32 34 52 111 680 20 33
600 24 795 32 36 52 112 730 24 33
650 26 845 34 38 56 116 780 24 33
700 28 905 34 40 58 132 840 24 33
750 30 970 36 44 62 139 900 24 33
800 32 1020 36 46 64 139 950 28 33
850 34 1070 36 48 66 139 1000 28 33
900 36 1120 38 50 70 140 1050 28 33
1000 40 1235 40 56 74 151 1160 28 39

Dimensions of JIS B2220 16k Flanges

JIS 16K Flange LTB Drilling Data
Normal Pipe Sizes (NPS) O.D. Flanges Flanges Thickness BLRF Thickness Length Of
Bossed
SOH.SW LI
Length Of Weld Neck Daimeter Of
Pitch Circle
Bolt Holes
Number
Daimeter Of
Bolt Holes
Millimeter Inches C T T1 L L1 PCD # H
10 3/8 90 12 12 16 31 65 4 15
15 1/2 95 12 12 16 32 70 4 15
20 3/4 100 14 14 20 34 75 4 15
25 1 125 14 14 20 36 90 4 19
32 1 1/4 135 16 16 22 39 100 4 19
40 2 1/2 140 16 16 24 39 105 4 19
50 2 155 16 16 24 40 120 8 19
65 2 1/2 175 18 18 26 46 140 8 19
80 3 200 20 20 28 49 160 8 23
90 3 1/2 210 20 20 30 50 170 8 23
100 4 225 22 22 34 56 185 8 23
125 5 270 22 22 34 60 225 8 25
150 6 305 24 24 38 79 260 12 25
200 8 350 26 26 40 73 305 12 25
250 10 430 28 28 44 81 380 12 27
300 12 480 30 30 48 88 430 16 27
350 14 540 34 34 52 104 480 16 33
400 16 605 38 38 60 115 540 16 33
450 18 675 40 40 64 126 605 20 33
500 20 730 42 42 68 128 660 20 33
550 22 795 44 44 70 135 720 20 39
600 24 845 46 46 74 141 770 24 39
650 26 895 48 N/A 77 N/A 820 24 39
700 28 960 50 N/A 80 N/A 875 24 42
750 30 1020 52 N/A 83 N/A 935 24 42
800 32 1085 54 N/A 86 N/A 990 24 48
850 34 1135 56 N/A 89 N/A 1040 24 48
900 36 1185 58 N/A 93 N/A 1090 28 48
1000 40 1320 62 N/A 99 N/A 1210 28 56

Dimension of JIS B2220 20K Flanges

JIS 20K Flange LTB Drilling Data
Normal Pipe Sizes (NPS) O.D. Flanges Flanges Thickness BLRF Thickness Length Of
Bossed
SOH.SW LI
Length Of Weld Neck Daimeter Of
Pitch Circle
Bolt Holes
Number
Daimeter Of
Bolt Holes
Millimeter Inches C T T1 L L1 PCD # H
10 3/8 90 14 14 20 33 65 4 15
15 1/2 95 14 14 20 34 70 4 15
20 3/4 100 16 16 22 36 75 4 15
25 1 125 16 16 24 38 90 4 19
32 1 1/4 135 18 18 26 41 100 4 19
40 2 1/2 140 18 18 26 41 105 4 19
50 2 155 18 18 26 42 120 8 19
65 2 1/2 175 20 20 30 48 140 8 19
80 3 200 22 22 34 51 160 8 23
90 3 1/2 210 24 24 36 54 170 8 23
100 4 225 24 24 36 58 185 8 23
125 5 270 26 26 40 64 225 8 25
150 6 305 28 28 42 73 260 12 25
200 8 350 30 30 46 77 305 12 25
250 10 430 34 34 52 87 380 12 27
300 12 480 36 36 56 94 430 16 27
350 14 540 40 40 62 110 480 16 33
400 16 605 46 46 70 123 540 16 33
450 18 675 48 48 78 134 605 20 33
500 20 730 50 50 84 136 660 20 33
550 22 795 52 52 90 143 720 20 39
600 24 845 54 56 96 149 770 24 39

JIS B2220 30K Flanges Dimensions

JIS 30K Flange LTB Drilling Data
Normal Pipe Sizes (NPS) O.D. Flanges Flanges Thickness BLRF Thickness Length Of
Bossed
SOH.SW LI
Length Of Weld Neck Daimeter Of
Pitch Circle
Bolt Holes
Number
Daimeter Of
Bolt Holes
Millimeter Inches C T T1 L L1 PCD # H
10 3/8 110 16 16 24 N/A 75 4 19
15 1/2 115 18 18 26 45 80 4 19
20 3/4 120 18 18 28 45 85 4 19
25 1 130 20 20 30 48 95 4 19
32 1 1/4 140 22 22 32 52 105 4 19
40 2 1/2 160 22 22 34 54 120 4 23
50 2 165 22 22 36 57 130 8 19
65 2 1/2 200 26 26 40 69 160 8 23
80 3 210 28 28 44 73 170 8 23
90 3 1/2 230 30 30 46 74 185 8 25
100 4 240 32 32 48 76 195 8 25
125 5 275 36 36 54 86 230 8 25
150 6 325 38 38 58 95 275 12 27
200 8 370 42 42 64 102 320 12 27
250 10 450 48 48 72 118 390 12 33
300 12 515 52 52 78 127 450 16 33
350 14 560 54 54 84 134 495 16 33
400 16 630 60 60 92 149 560 16 39

JIS Dimensions of JIS B2220 30K Slip On Flange

Nominal Diameter of Flanges Outside Diameter of Flanges D Flange Sectional Dimensions Reference
Diameter Of Bolt Circle C Diameter Of raised Face g Inside Diameter (I.D.) Of Flange do Outside Diameter (O.D.) of Steel pipe t T Diameter of Hub Radius r f D No. of Bolt Holes Holes Diameter H Nominal Bolts Sizes S1 M S2 N L
a b
10 110 75 52 17.8 17.3 16 24 30 34 4 1 4 19 M16
15 115 80 55 22.2 21.7 18 26 36 40 5 1 4 19 M16 31 4 40 5
20 120 85 60 27.7 27.2 18 28 42 46 5 1 4 19 M16 37 5 44 5
25 130 95 70 34.5 34 20 30 50 54 5 1 4 19 M16 55 6 52 5
32 140 105 80 43.2 42.7 22 32 60 64 6 2 4 19 M16 52 6 60 5
40 160 120 90 49.1 48.6 22 34 66 70 6 2 4 23 M20 58 6 66 5
50 165 130 105 61.1 60.5 22 36 82 86 6 2 8 19 M16 70 6.5 78 5
65 200 160 130 77.1 76.3 26 40 102 106 8 2 65.9 8 23 M20 96 9.5 94 5 6
80 210 170 140 90 89.1 28 44 115 21 8 2 78.1 8 23 M20 109 9.5 6
-90 230 185 150 102.6 101.6 30 46 128 134 8 2 90.2 8 25 M22 122 9.5 6
100 240 195 160 115.4 114.3 32 48 141 147 8 2 102.3 8 25 M22 135 9.5 6
125 275 230 195 141.2 139.8 36 54 166 172 8 2 126.6 8 25 M22 160 9.5 6
150 325 275 235 166.6 165.2 38 58 196 204 8 2 151 12 27 M24 186 9.5 6
200 370 320 280 218 216.3 42 64 248 256 8 2 199.9 12 27 M24 237 9.5 6
250 450 390 345 269.5 267.4 48 72 306 314 10 2 248.8 12 22 M30 290 10 6
300 515 450 405 321 318.5 52 78 360 370 10 3 297.9 16 33 M30 345 12 6
350 560 495 450 358.1 355.6 54 84 402 412 12 3 333.4 16 33 M30 383 13 6
400 630 560 510 409 406.4 60 92 456 468 15 3 381 16 39 M36 435 14 7

JIS B2220 Blind Flanges Size Chart

Flange Size d D C Bolts Number h t
010 – 3/8″ 17.8 millimeter 75 millimeter 55 millimeter 4 12 millimeter 9 millimeter
015 – 1/2″ 22.2 mm 80 mm 60 mm 4 12 mm 9 mm
020 – 3/4″ 27.7 mm 85 mm 65 mm 4 12 mm 10 mm
025 – 1″ 34.5 mm 95 mm 75 mm 4 12 mm 10 mm
032 – 1-1/4″ 43.2 mm 115 mm 90 mm 4 15 mm 12 mm
040 – 1-1/2″ 49.1 mm 120 mm 95 mm 4 15 mm 12 mm
050 – 2″ 61.1 mm 130 mm 105 mm 4 15 mm 14 mm
065 – 2-1/2″ 77.1 mm 155 mm 130 mm 4 15 mm 14 mm
080 – 3″ 90.0 mm 180 mm 145 mm 4 19 mm 14 mm
090 – 3-1/2″ 102.6 mm 190 mm 155 mm 4 19 mm 14 mm
100 – 4″ 115.4 mm 200 mm 165 mm 8 19 mm 16 mm
125 – 5″ 141.2 mm 235 mm 200 mm 8 19 mm 16 mm
150 – 6″ 166.6 mm 265 mm 230 mm 8 19 mm 18 mm
175 – 7″ 192.1 mm 300 mm 260 mm 8 23 mm 18 mm
200 – 8″ 218.0 mm 320 mm 280 mm 8 23 mm 20 mm
250 – 10″ 269.5 mm 385 mm 345 mm 12 23 mm 22 mm
300 – 12″ 321.0 mm 430 mm 390 mm 12 23 mm 22 mm
350 – 14″ 358.1 mm 480 mm 435 mm 12 25 mm 24 mm
400 – 16″ 409.0 mm 540 mm 495 mm 16 25 mm 24 mm
450 – 18″ 460 mm 605 mm 555 mm 16 25 mm 24 mm
500 – 20″ 511.0 mm 655 mm 605 mm 20 25 mm 24 mm
550 – 22″ 562.0 mm 720 mm 665 mm 20 27 mm 26 mm
600 – 24″ 613.0 mm 770 mm 715 mm 20 27 mm 26 mm
650 – 26″ 664.0 mm 825 mm 770 mm 24 27 mm 26 mm
700 – 28″ 715 mm 875 mm 820 mm 24 27 mm 26 mm

Dimensions of JIS B2220 30k Weld Neck Flanges

Flange Size d D C Bolts Number h t
010 – 3/8″ 17.8 millimeter 75 millimeter 55 millimeter 4 12 millimeter 9 millimeter
015 – 1/2″ 22.2 mm 80 mm 60 mm 4 12 mm 9 mm
020 – 3/4″ 27.7 mm 85 mm 65 mm 4 12 mm 10 mm
025 – 1″ 34.5 mm 95 mm 75 mm 4 12 mm 10 mm
032 – 1-1/4″ 43.2 mm 115 mm 90 mm 4 15 mm 12 mm
040 – 1-1/2″ 49.1 mm 120 mm 95 mm 4 15 mm 12 mm
050 – 2″ 61.1 mm 130 mm 105 mm 4 15 mm 14 mm
065 – 2-1/2″ 77.1 mm 155 mm 130 mm 4 15 mm 14 mm
080 – 3″ 90.0 mm 180 mm 145 mm 4 19 mm 14 mm
090 – 3-1/2″ 102.6 mm 190 mm 155 mm 4 19 mm 14 mm
100 – 4″ 115.4 mm 200 mm 165 mm 8 19 mm 16 mm
125 – 5″ 141.2 mm 235 mm 200 mm 8 19 mm 16 mm
150 – 6″ 166.6 mm 265 mm 230 mm 8 19 mm 18 mm
175 – 7″ 192.1 mm 300 mm 260 mm 8 23 mm 18 mm
200 – 8″ 218.0 mm 320 mm 280 mm 8 23 mm 20 mm
250 – 10″ 269.5 mm 385 mm 345 mm 12 23 mm 22 mm
300 – 12″ 321.0 mm 430 mm 390 mm 12 23 mm 22 mm
350 – 14″ 358.1 mm 480 mm 435 mm 12 25 mm 24 mm
400 – 16″ 409.0 mm 540 mm 495 mm 16 25 mm 24 mm
450 – 18″ 460 mm 605 mm 555 mm 16 25 mm 24 mm
500 – 20″ 511.0 mm 655 mm 605 mm 20 25 mm 24 mm
550 – 22″ 562.0 mm 720 mm 665 mm 20 27 mm 26 mm
600 – 24″ 613.0 mm 770 mm 715 mm 20 27 mm 26 mm
650 – 26″ 664.0 mm 825 mm 770 mm 24 27 mm 26 mm
700 – 28″ 715 mm 875 mm 820 mm 24 27 mm 26 mm

Other Types of JIS B2220 Flanges

Stainless Steel JIS B2220 Flanges
SS JIS B2220 5K Flanges
JIS B2220 10K Raised Face Flanges
JIS B2220 Flanges Specification
Class 150 JIS B2220 Flanges
Duplex Steel 2205 JIS B2220 Flanges Exporter
JIS B2220 20K Flanges Stockist
JIS B2220 5K & 10K Flanges Stockist
JIS B2220 Flanges Supplier
JIS B2220 Blind Flange
Carbon Steel JIS B2220 Loose Flanges
Super Duplex 2507 JIS B2220 Flanges

JIS B2220 Forged Flanges Distributor
Monel JIS B2220 Flange
JIS B2220 Flanges Price
Raised Face JIS B2220 Flanges
JIS B2220 5K Flange Price
Alloy Steel JIS B2220 Flanges
JIS B2220 10K Flange Manufacturer
Nickel Alloy JIS B2220 Flat Face Flanges
Inconel JIS B2220 Pipe Flanges
Hastelloy JIS B2220 20K Flanges
Copper Nickel JIS B2220 Flanges Dealer
Titanium JIS B2220 Blind Flanges


JIS B2220 Flanges Application Area

Our products range of JIS B2220 Flanges find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.
