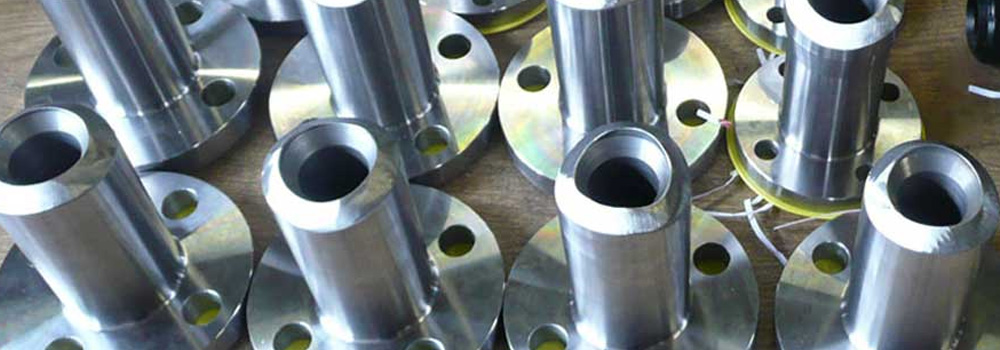

Nipo Flanges

Table of Content

Class 300 Nipo Flanges, Carbon Steel Nipo Flange, Nickel Alloy Nipo Flanges, ASME B16.5 Raised Face Nipo Flange, ANSI B16.5 Nipo Flanges, Best Deals on Raised Face Nipo Flanges, ASME / ANSI B16.5 Nipo Flanges, Stainless Steel Nipo Flange Supplier in India.

Kalpataru Piping Solutions is an eminent distributor of Nipo Flanges in the industry, which is particularly associated with crevices and rough surface finish. Stainless Steel Nipo Flanges is ideally suited to applications requiring corrosion resistance superior to kind 304 and has wise elevated temperature strength. Carbon Steel Nipo Flanges is that the lower carbon version and is immune from sensitization. Alloy Steel Nipo Flanges is terribly oft utilized in significant gauge welded parts. Super Duplex Steel Nipo Flanges is considered proof against corroding corrosion in potable water with up to concerning chlorides at close temperatures at 60°C. Nickel Alloy Nipo Flanges offers good oxidisation resistance in intermittent service to 870°C and in continuous service to 925°C. The addition of metal and rather higher nickel content build Inconel Nipo Flanges applicable for discipline applications in severe settings, from contaminated marine environments to areas with sub-zero temperatures. Monel Nipo Flanges is suitable for welding because it has carbon content series alloys to avoid carbide precipitation in welding applications. Hastelloy Nipo Flanges is extensively used in heavy gauge welded components (over about 6mm). Continuous use of Titanium Nipo Flanges in the 860 Degree C range is not recommended if subsequent aqueous corrosion resistance is important. In many marine environments, Copper Nickel Nipo Flanges does exhibit surface corrosion, usually visible as brown staining. The molybdenum gives Alloy 20 Nipo Flanges better overall corrosion resistant properties, particularly higher resistance to pitting and crevice corrosion in chloride environments.

Large Selection of Inconel Nipo Flanges, SS Nipo Flanges, ANSI B16.5 Nipo Flange, ANSI B16.5 150 LBS Nipo Flange, Hastelloy Nipo Flange Dealer, Alloy Steel Nipo Flanges, High Quality Duplex Steel Nipo Flanges, Class 1500 Nipo Flanges, Monel Nipo Flanges, ANSI/ASME B16.5 Class 600 Nipo Flange Exporter.

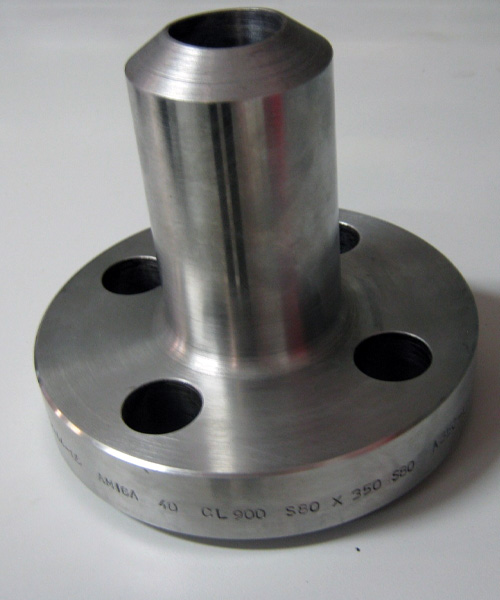

Stainless Steel Nipo Flanges

ASME B16.5 Nipo Flanges Specification

Size

½" (15 NB) to 48" (1200NB)

Dimension Standard

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS

BS4504 , BS4504, BS1560, BS10

Flange Face Type

Flate Face (FF), Raised Face (RF), Nipo (RTJ)

Testing and Documents

Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing

Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Nipo Flanges Material & Grades

Stainless Steel Nipo Flanges
ASTM A182 F 304, 304L, 304H, 309, 310, 310S, 316, 316L, 317, 317L, 321, 321H, 347, 347H, 446, 904L
Carbon Steel Nipo Flanges
ASTM A105, ASTM A694 Gr. F42, 46, 52, 56, 60, 65, 70
Alloy Steel Nipo Flanges
ASTM A182, F1, F5, F9, F11, F22, F91
Duplex Steel Nipo Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
Super Duplex Nipo Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
High Nickel Alloy Nipo Flanges
ASTM B564, B160, B472, B162, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade 2 & 5), Cupro-Nickel 70/30, Cupro-Nickel 90/10.
Low Temperature Carbon Steel Nipo Flanges
ASTM A350, LF2, LF3

Dimensions of Nipo Flanges

Nipo Flange Dimensions Branch ½”
RATING

NOMINAL PIPE SIZE FROM 3/4" TO 36"
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 0,9
150# XS 13,8 17,6 88,9 11,2 0,9
160 11,7 11,7 0,9
XXS 6,4 6,4 0,9
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 1,2
300# XS 13,8 17,6 95,3 14,3 1,2
160 11,7 11,7 1,2
XXS 6,4 6,4 1,2
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 1,3
600# XS 13,8 17,6 95,3 14,3 1,3
160 11,7 11,7 1,3
XXS 6,4 6,4 1,3
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 2,4
900# XS 13,8 17,6 120,6 22,4 2,4
160 11,7 11,7 2,4
XXS 6,4 6,4 2,4
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 2,4
1500# XS 13,8 17,6 120,6 22,4 2,4
160 11,7 11,7 2,4
XXS 6,4 6,4 2,4
Bore schedule B C D E Weight [kg]
STD 15,8 18,5 3,6
2500# XS 13,8 17,6 133,4 30,2 3,6
160 11,7 11,7 3,6
XXS 6,4 6,4 3,6
Branch ¾” Nipo Flange Dimensions
RATING

NOMINAL PIPE SIZE FROM 1" TO 36"
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 1,2
150# XS 18,9 22,8 98,6 12,7 1,2
160 15,6 15,6 1,4
XXS 11,1 11,1 1,5
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 1,7
300# XS 18,9 22,8 117,4 15,8 1,9
160 15,6 15,6 2
XXS 11,1 11,1 2,1
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 2
600# XS 18,9 22,8 117,4 15,8 2,1
160 15,6 15,6 2,2
XXS 11,1 11,1 2,2
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 3,1
900# XS 18,9 22,8 130 25,4 3,2
160 15,6 15,6 3,2
XXS 11,1 11,1 3,3
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 3,1
1500# XS 18,9 22,8 130 25,4 3,2
160 15,6 15,6 3,2
XXS 11,1 11,1 3,3
Bore schedule

B

 C

D

 E Weight [kg]
STD 21 23,8 4,4
2500# XS 18,9 22,8 139,7 31,8 4,5
160 15,6 15,6 4,5
XXS 11,1 11,1 4,6
Nipo Flange Dimensions Branch 1”
RATING

NOMINAL PIPE SIZE FROM 1.1/2" TO 36"
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 1,7
150# XS 24,3 28,8 108 14,3 1,7
160 20,7 20,7 2
XXS 15,2 15,2 2,2
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 2,3
300# XS 24,3 28,8 124 17,6 2,5
160 20,7 20,7 2,6
XXS 15,2 15,2 2,8
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 2,6
600# XS 24,3 28,8 124 17,6 2,7
160 20,7 20,7 2,8
XXS 15,2 15,2 3
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 4,5
900# XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 4,5
1500# XS 24,3 28,8 149,4 28,5 4,6
160 20,7 20,7 4,7
XXS 15,2 15,2 4,8
Bore schedule B

C

 D E Weight [kg]
STD 26,6 30 6,1
2500# XS 24,3 28,8 158,8 35,1 6,2
160 20,7 20,7 6,2
XXS 15,2 15,2 6,3
Nipo Flange Dimensions Branch 1½”
RATING

NOMINAL PIPE SIZE FROM 2" TO 36"
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 3,1
150# XS 38,1 43,2 127 17,5 3,3
160 34 34 3,5
XXS 28 28 3,8
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 4,1
300# XS 38,1 43,2 155,5 20,6 4,5
160 34 34 4,7
XXS 28 28 5
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 4,9
600# XS 38,1 43,2 155,5 22,4 5
160 34 34 5,2
XXS 28 28 5,5
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 7,2
900# XS 38,1 43,2 177,8 31,8 7,4
160 34 34 7,6
XXS 28 28 7,9
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 7,2
1500# XS 38,1 43,2 177,8 31,8 7,4
160 34 34 7,6
XXS 28 28 7,9
Bore schedule

B

C

 D E

Weight [kg]
STD 40,9 44,6 12
2500# XS 38,1 43,2 203,2 44,5 12
160 34 34 12,2
XXS 28 28 12,5
Nipo Flange Dimensions Branch 2"
RATING

NOMINAL PIPE SIZE FROM 3" TO 36"
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 4,1
150# XS 49,2 54,8 152,4 19,1 4,8
160 42,8 42,8 5,1
XXS 38,2 38,2 5,5
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 5,5
300# XS 49,2 54,8 165,1 22,4 5,8
160 42,8 42,8 6,1
XXS 38,2 38,2 6,5
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 6,2
600# XS 49,2 54,8 165,1 25,4 6,5
160 42,8 42,8 7
XXS 38,2 38,2 7,2
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 13
900# XS 49,2 54,8 215,9 38,1 13,3
160 42,8 42,8 13,6
XXS 38,2 38,2 13,9
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 13
1500# XS 49,2 54,8 215,9 38,1 13,3
160 42,8 42,8 13,6
XXS 38,2 38,2 13,9
Bore schedule B C D E

Weight [kg]
STD 52,5 56,4 18,4
2500# XS 49,2 54,8 235 50,8 18,6
160 42,8 42,8 19
XXS 38,2 38,2 19,3
Nipo Flange Dimensions Branch 3”
RATING

NOMINAL PIPE SIZE FROM 4" TO 36"
Bore schedule Length D E

Weight [kg]
150# 10-STD 115 7,5
XS-80 115 191 23,9 7,5
160-XXS 145 8
Bore schedule Length D E

Weight [kg]
300# 10-STD 125 10
XS-80 125 210 28,5 10
160-XXS 150 11
Bore schedule Length D E

Weight [kg]
600# 10-STD 135 13,5
XS-80 135 210 38,2 13,5
160-XXS 165 14,5
Bore schedule Length D E

Weight [kg]
900# 10-STD 155 17
XS-80 155 241 44,5 17
160-XXS 180 18
Bore schedule Length D E

Weight [kg]
1500# 10-STD 170 25
XS-80 170 267 54,1 25
160-XXS 200 26
Bore schedule Length D E

Weight [kg]
2500# 10-STD 220 45,5
XS-80 220 305 72,9 45,5
160-XXS 250 51
Nipo Flange Dimensions Branch 4”
RATING NOMINAL PIPE SIZE FROM 5" TO 36"
Bore schedule Length D E Weight [kg]
150# 10-STD 130 11,5
XS-80 130 229 23,9 11,5
160-XXS 160 13
Bore schedule Length D E Weight [kg]
300# 10-STD 140 16
XS-80 140 254 31,8 16
160-XXS 170 17
Bore schedule Length D E Weight [kg]
600# 10-STD 160 24
XS-80 160 273 44,5 24
160-XXS 195 26
Bore schedule Length D E Weight [kg]
900# 10-STD 170 28
XS-80 170 292 50,8 28
160-XXS 205 29,5
Bore schedule Length D E Weight [kg]
1500# 10-STD 180 38
XS-80 180 311 60,2 38
160-XXS 215 40
Bore schedule Length D E Weight [kg]
2500# 10-STD 250 70,5
XS-80 250 356 82,4 70,5
160-XXS 281 72
Nipo Flange Dimensions Branch 6”
RATING NOMINAL PIPE SIZE FROM 8" TO 36"
Bore schedule Length D E Weight [kg]
150# 10-STD 150 23,5
XS-80 170 279 25,4 25
160-XXS 195 27
Bore schedule Length D E Weight [kg]
300# 10-STD 160 36,6
XS-80 175 318 36,6 37,5
160-XXS 205 39
Bore schedule Length D E Weight [kg]
600# 10-STD 185 49,5
XS-80 200 356 54,1 51
160-XXS 230 53,2
Bore schedule Length D E Weight [kg]
900# 10-STD 210 62,5
XS-80 225 381 62 64,3
160-XXS 250 66
Bore schedule Length D E Weight [kg]
1500# 10-STD 240 87,5
XS-80 255 394 88,9 89
160-XXS 285 91,2
Bore schedule Length D E Weight [kg]
2500# 10-STD 340 186
XS-80 360 483 114,3 189
160-XXS 385 192,5

ASME B16.5 Nipo Flanges Price List

We offer wide range of industrial Nipo Flanges that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Stainless Steel Nipo Flanges Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com

Other Types of Nipo Flanges

Stainless Steel Nipo Flanges
ASTM A403 SS Nipo Flanges
Raised Face Nipo Flanges
ASME B16.5 Nipo Flanges Specification
ASME B16.5 Class 150 Nipo Flanges
Duplex Steel 2205 Nipo Flanges Exporter
ASME B16.5 Nipo Flanges Stockist
ANSI/ ASME B 16.5 Nipo Flanges Stockist
ANSI B16.5 Nipo Flanges Supplier
ASME/ANSI B16.5 Nipo Flange
Carbon Steel Nipo Flanges
Super Duplex 2507 Nipo Flanges

ANSI B16.5 Nipo Flanges Distributor
Monel Nipo Flange
ASME B16.5 Nipo Flanges Price
ANSI B16.5 Nipo Raised Face Flanges
PN16/3 Nipo Flange Price
Alloy Steel Nipo Flanges
Nipo Flange Manufacturer
Nickel Alloy Nipo Flanges
ASME B16.5 Inconel Nipo Flanges
ANSI/ASME B16.5 Hastelloy Nipo Flanges
Copper Nickel Nipo Flanges Dealer
Titanium Alloy Nipo Flanges


Nipo Flanges Application Area

Our products range of Nipo Flanges find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.

Other Stock of Flanges

Slip on Flanges Socket weld Flanges Orifice Flanges Blind Flanges Lap Joint Flanges Weld Neck Flanges RTJ Flanges Long Weld Neck Flanges spEctacle blind flanges
